Transparent Smartwatch Back Housing / Cold runner / Three-plates mold No.22399

Name: Transparent Smartwatch Back Housing Cold runner Threeplates mold No22399
Brand: Chitwing
Price: 1 USD

Quality Transparent Smartwatch Back Housing / Cold runner / Three-plates mold No.22399 for sale

Brand Name : Chitwing

Model Number : Smart Watch

Certification : ISO 9001:2015

Place of Origin : Vietnam

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 180 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

Size : 300 X 300 X 351

IMM Tonnage : 80T

Mold Weight : 195kg

lifters : 3

Type : Three-plates mold

Part material : PC+20GF

gate : the pin point gate turns to the side gate

Tool life : 500k shots

Cavity : Harden (1*1/S136)

Core : Harden (1*1/S136)

Design software : 3D:UG 4.0, 2D:CAD

Contact Now

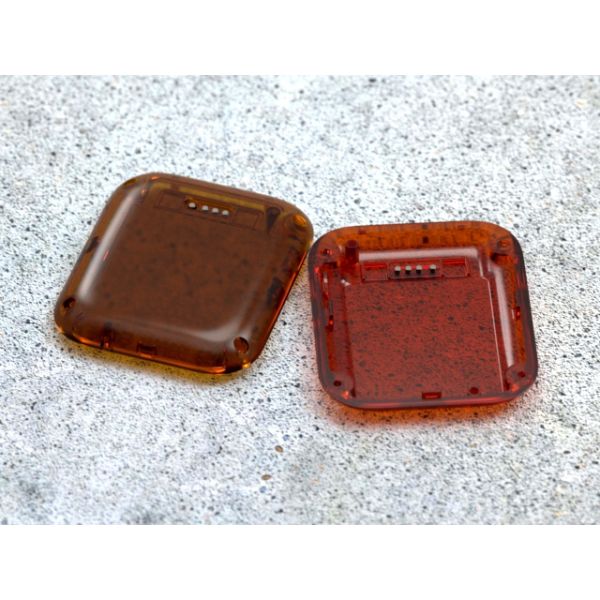

Transparent Smartwatch Back Housing

No.22399

Brand: Chitwing
Origin: Guangdong, China
Type	Three-plates mold
Injection/runner type	Cold runner
Part material	PC+20GF

The mold is designed with a sub gate (the pin point gate turns to the side gate),

custom mold base, LKM standard, and 3 lifters

Transparent Smartwatch Back Housing / Cold runner / Three-plates mold No.22399

Mold size			Net weight
Length	Width	Height	195kg
300	300	351	195kg

Large surface EDM with Charmilles VDI24#, waterproof surface polished to 1000# sandpaper

Transparent Smartwatch Back Housing / Cold runner / Three-plates mold No.22399

Cavity	Harden
Core
Tool life: 500k shots

Transparent Smartwatch Back Housing / Cold runner / Three-plates mold No.22399

The mold fits 80T machine, the part net weight is 4.1g,

and the part size is 40.4 * 47.3 * 4.95mm

Display diagram

Transparent Smartwatch Back Housing / Cold runner / Three-plates mold No.22399
