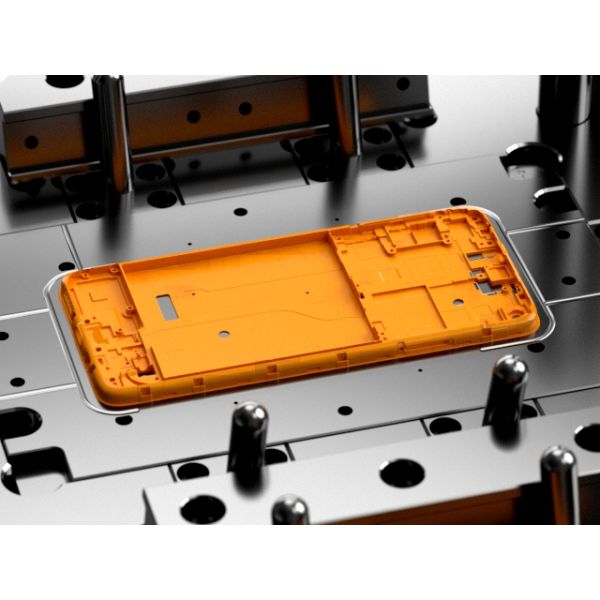

Front Housing (1*2) / hot runner turns to cold runner / Three-plates mold No.21774

Name: Front Housing 12 hot runner turns to cold runner Threeplates mold No21774
Brand: Chitwing
Price: 1 USD

Quality Front Housing (1*2) / hot runner turns to cold runner / Three-plates mold No.21774 for sale

Brand Name : Chitwing

Model Number : Mobile Phone

Certification : ISO 9001:2015

Place of Origin : Vietnam

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 180 set/month

Delivery Time : 30 day(s)

Packaging Details : The mold is packaged with a wooden box and placed on a wood pallet.

name : AD

IMM Tonnage : 180T

Mold Weight : 550kg

Mold base P/N : FCI4060.6090100.

Features : 4 slides and 6 lifters

Part material : PC+10%GF

Part weight : 6g

Design software : 3D:UG 4.0/2D:CAD

Contact Now

Front Housing (1*2)

No.21774

Length	450	① Standard mold base P/N FCI4060.6090100. ② 4 slides and 6 lifters ③ IMM tonnage: 180T
Width	600
Height	501
Net weight	550kg

Front Housing (1*2) / hot runner turns to cold runner / Three-plates mold No.21774

Uniform mold temperature, pin point gate, long tool life of about 500k shots;

The three-plates mold has scientific design and minimize cold slug;

harden cavity and core to excellent anti-wearing performance and good strength,

short cycle time and high production efficiency

Front Housing (1*2) / hot runner turns to cold runner / Three-plates mold No.21774

Surface

finish

A surface polished to 1000# sandpaper

Gluing surface (jet) EDM with VDI27#

Other surfaces EDM with VDI24#

Front Housing (1*2) / hot runner turns to cold runner / Three-plates mold No.21774

Injection/runner type		Part material		Part weight	Part size
The hot runner turns to the cold runner		PC+10%GF		6g	160.37 X 75.00 X 7.50mm

Display diagram

Front Housing (1*2) / hot runner turns to cold runner / Three-plates mold No.21774
